Asset Number: MWSWS003
Price: Call for Pricing

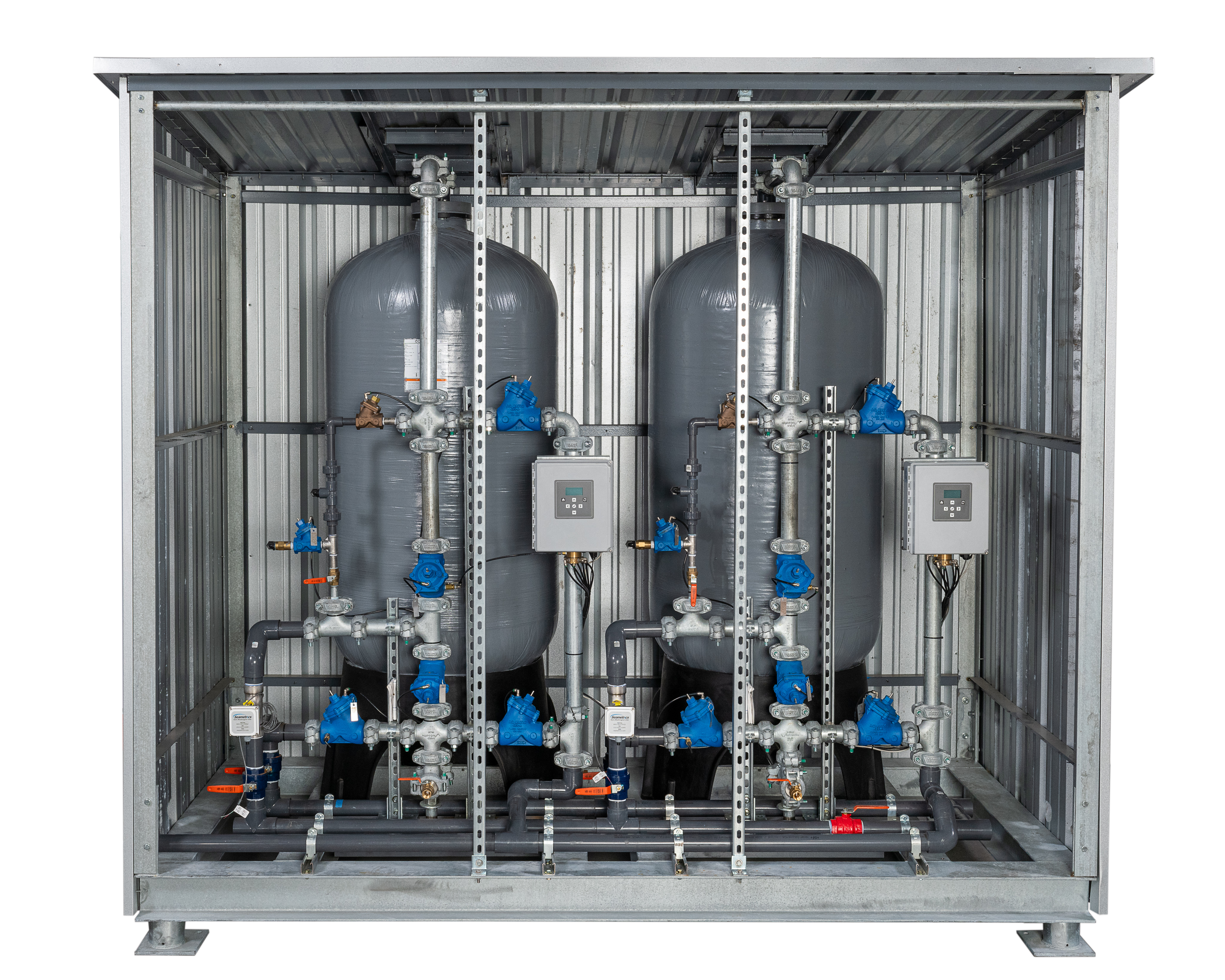

This duplex softener system comes in a self-contained, skidded enclosure. It can be configured in either parallel or alternating modes. The system supports a maximum allowable hardness of 30 gr/gal and a maximum treated flow rate of 100 GPM. Each fiberglass tank is equipped with its own controller. The system is pre-piped with 2" inlet, outlet, and drain connections. Additionally, the unit is prewired and requires a single 120VAC power supply for the controllers. The system can be supplied with brine tanks of any size to meet specific requirements.

Specifications:
Max Flow Rate: 100 GPM
Inlet: 2” Victaulic Grooved
Outlet: 2” Victaulic Grooved
Drain: 2” Victaulic Grooved
Brine Connection: 1”
Power: 120VAC

• Max Flow Rate: 300 GPM
• Inlet: 3” Victaulic Grooved
• Outlet: 3” Victaulic Grooved
• Drain: 2” Victaulic Grooved
• Brine Connection: 1”
• Power: 120VAC

Asset Number: MWSWS001
Price: Call for Pricing

Details:

This triplex softener system comes mounted on a skid and can be configured in either parallel or alternating modes. It supports a maximum allowable hardness of 30 gr/gal and a maximum treated flow rate of up to 300 GPM. Each steel tank is equipped with its own controller. The system is pre-piped with 2" inlet, outlet, and drain connections. Additionally, the unit requires a single 120VAC power supply for the controllers. The system can be supplied with brine tanks of any size to meet specific requirements.

• Max Flow Rate: 200 GPM
• Inlet: 3” Flanged
• Outlet: 3” Flanged
• Drain: 2” Flanged
• Brine Connection: 1”
• Power: 120VAC

Asset Number: MWSWS002
Price: Call for Pricing

Details:

This simplex softener system comes mounted on a skid. It supports a maximum allowable hardness of 30 gr/gal and a maximum treated flow rate of 200 GPM. The type 316 stainless steel tank is equipped with its own controller. The system is pre-piped with SS316 2" inlet, outlet, and drain connections. Additionally, the unit requires a single 120VAC power supply for the controller. The system can be supplied with brine tanks of any size to meet specific requirements.

• Max Flow Rate: 500 GPM
• Inlet: 4” Flanged
• Outlet: 4” Flanged
• Drain: 2” Flanged
• Brine Connection: 1”
• Power: 120VAC

Asset Number: MWSWS004
Price: Call for Pricing

Details:

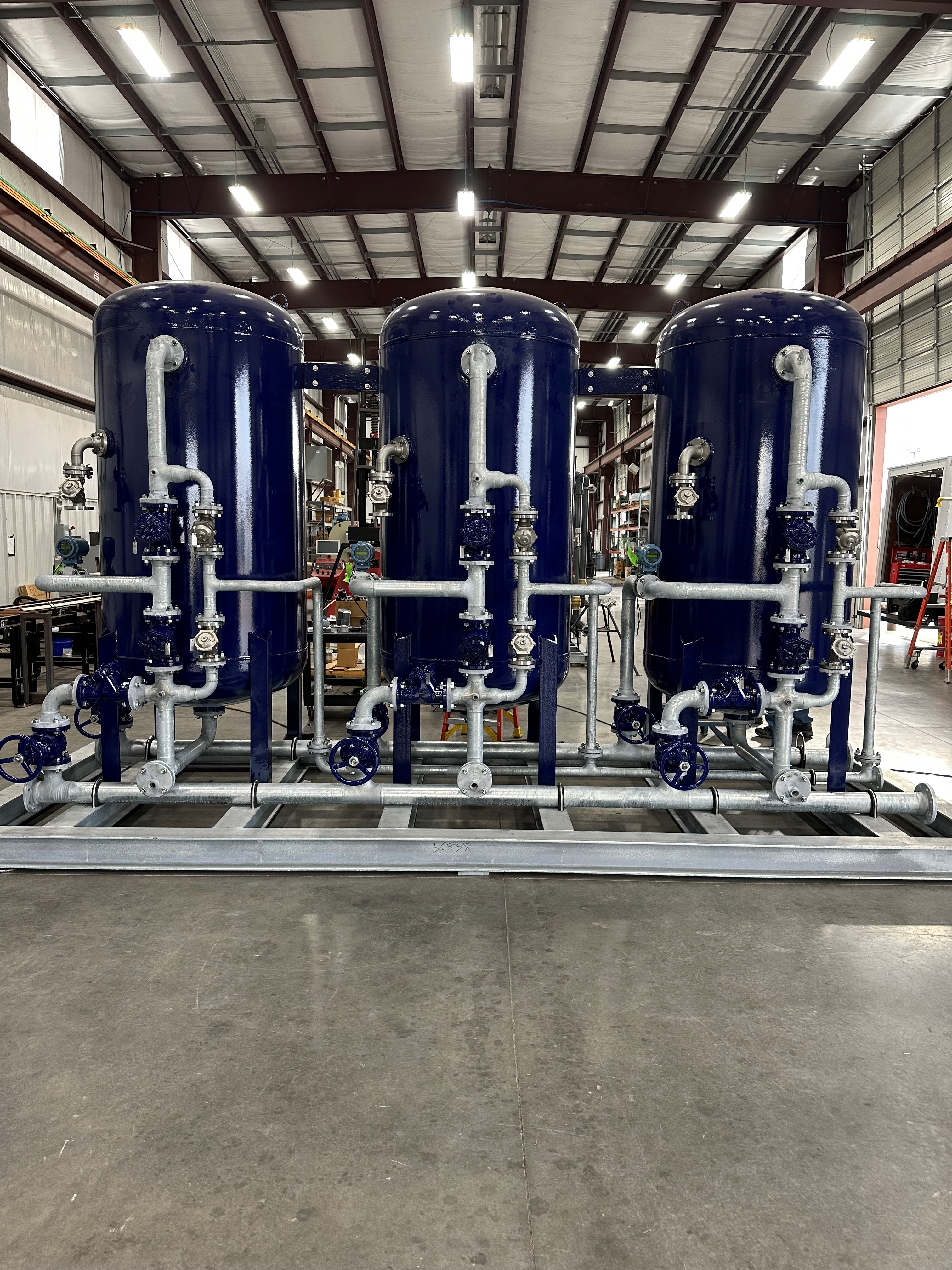

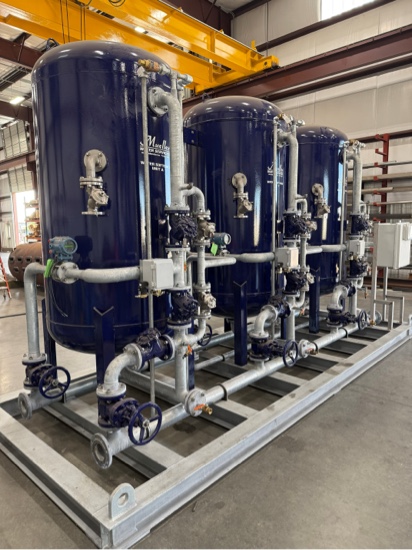

This triplex softener system comes mounted on a galvanized steel skid and can be configured in either parallel or alternating modes. It supports a maximum allowable hardness of 30 gr/gal and a maximum treated flow rate of up to 500 GPM. Each steel tank is equipped with its own controller. The system is pre-piped with 4" inlet, outlet, and 2” drain connections. Additionally, the unit requires a single 120VAC power supply for the controllers. The system can be supplied with brine tanks of any size to meet specific requirements.

• Permeate Flow Rate: 260/150 GPM
• Inlet: 3” Victaulic Grooved
• Outlet: 3” Victaulic Grooved
• Draint: 2” Victaulic Grooved
• Pump Motor HP: XX
• Pump Motor Power: 230/460 VAC

Asset Number: MWRO001
Price: Call for Pricing

Details:

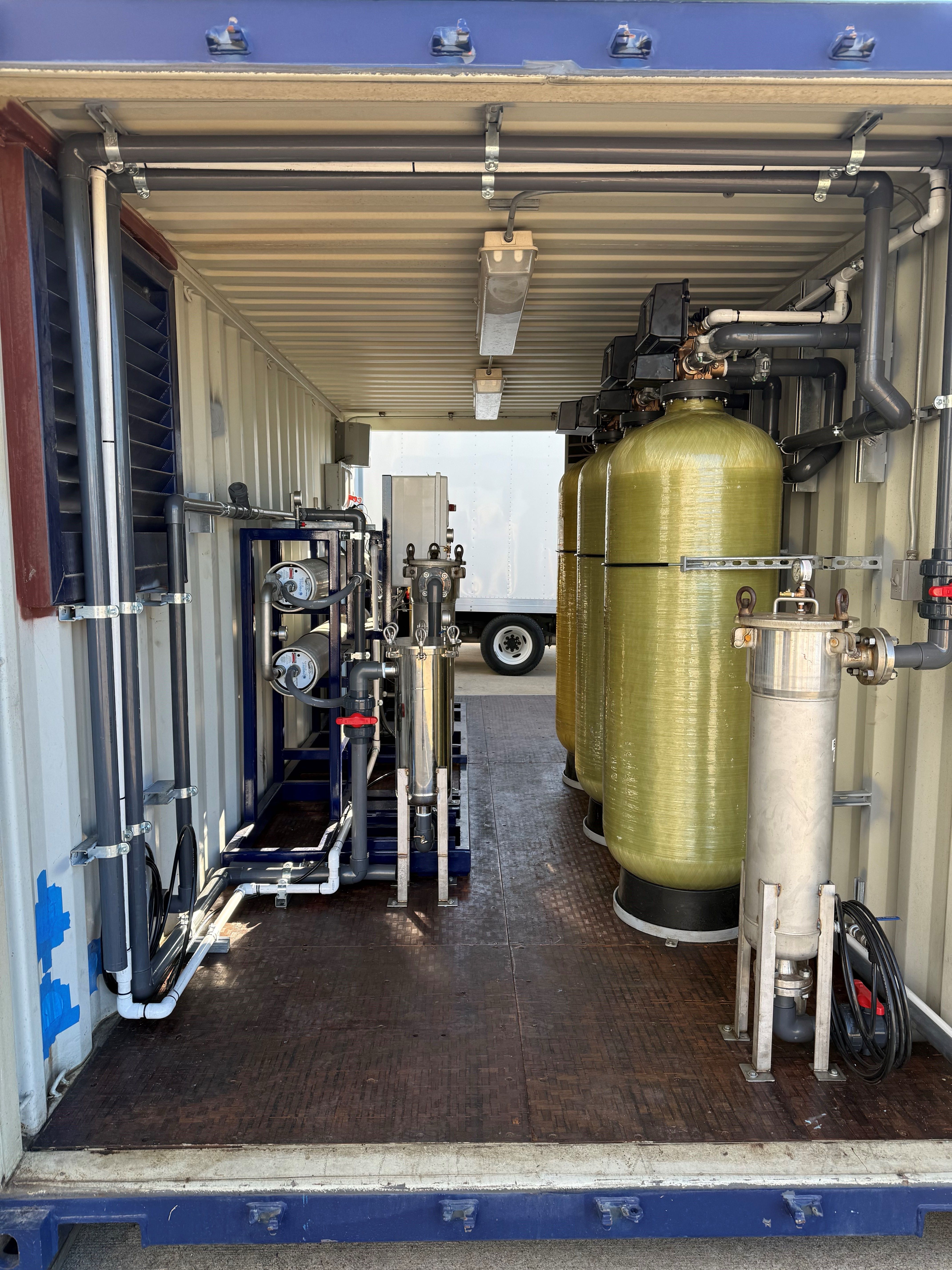

Sample: This reverse osmosis water treatment system is designed to produce at flowrates of up to 260 GPM in single pass mode and up to 150 GPM in double pass mode. System includes two activated carbon (AC) filters (AC-0401A/B). The RO system consists of two trains (RO-1 and RO-2), available to operate in single pass or double pass mode. Each RO train has a dedicated Tonkaflo high pressure feed pump. The RO-01 unit consists of ten housings with a 5:3:2 array. The RO-02 unit consists of five housings with a 3:2 array. Instrumentation includes feed pressure indicators, permeate pressure indicator, permeate high pressure switch, permeate flowmeter, and permeate conductivity meter.
